  • signal relocation on the cheap

    it is easy and our bikes come with most of the hardware needed.i have a springer so i dont have pinch bolts but everything else is the same
    on the older controls the clutch side signal has a bracket that isnt on the right side.you will need 2 of these HD part#67829-88

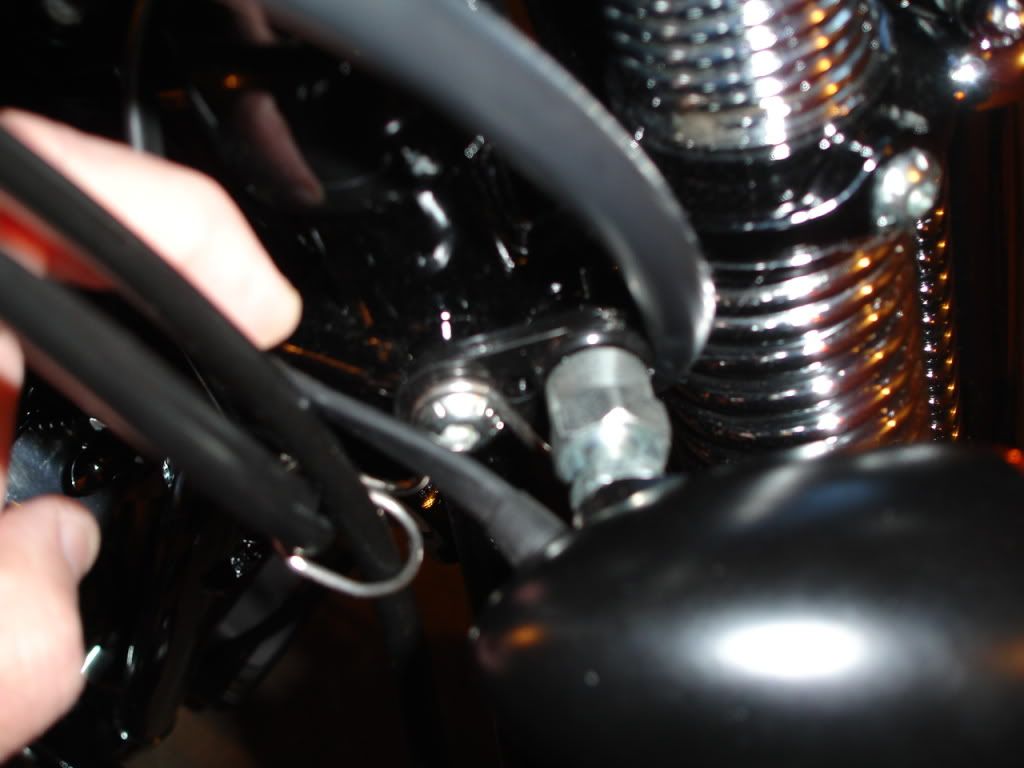

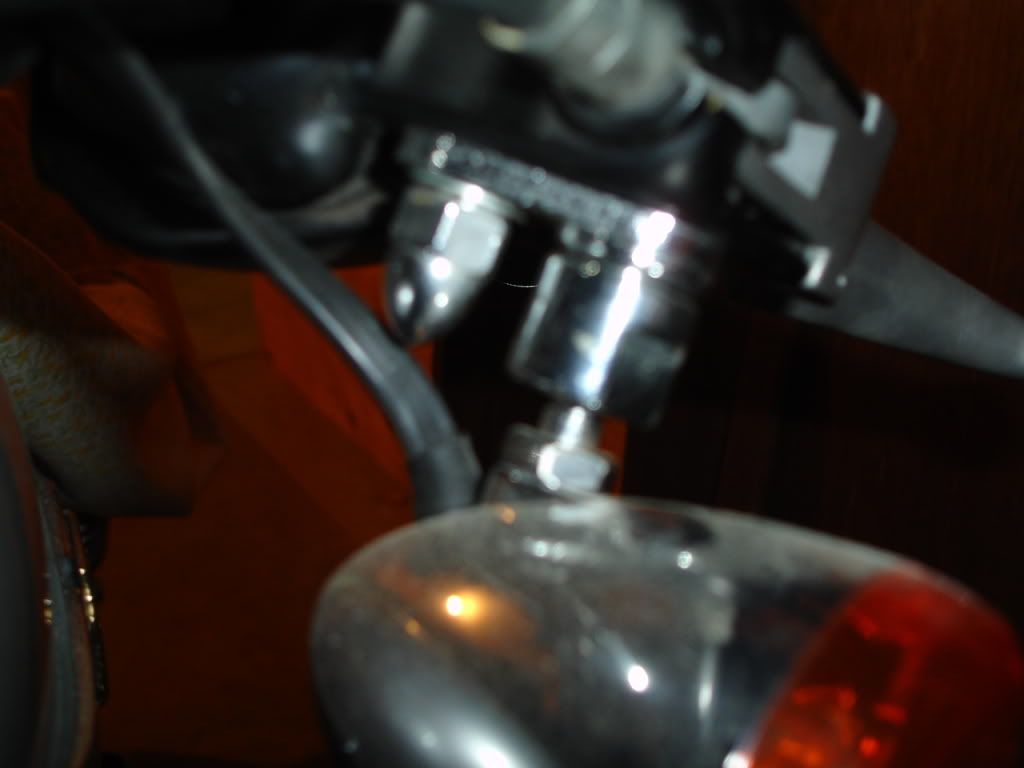

    to relocate install a stud in the upper or lower triple tree pinch bolt long enough to add a spacer to bring it out flush and it cant crush went torqued then add signal bracket and an acorn or similar to hold in place..now just screw on the signal and its done..i did it on my new springer same thing different bolts..
    took about an hour start to finish..after it was done i took them apart and painted them black..since ive changed them for the chrome swivels as i got them for my birthday from the family..if they hadnt got them for me id still be running the painted black ones




    09 Softail Springer FLSTFBT "AKA" Heritage Fatbones Touring
    www.youtube.com/user/bcvtwin?feature=mhee

    herd #148

  • #2
    I like them better down below where they belong instead of the bars! Looks good and thanks for the information! Much appreciated....
    .
    2010 FLHX - Street Glide
    HERD MEMBER #00003

    Comment


    • #3
      yea I like that too and I wonder if these instructions would work on my FXR?
      2018 Road Glide
      Member #00014

      Comment


      • #4
        i didnt like anything aboutt my turns so i took em off

        neither bike has the blinky blinks
        Twenty First Herdster
        * When Its All Said And Done, Will You Have Said More Than You Have Done?
        ** How Old Would You Be If You Didnt Know How Old You Where?
        99 FLSTF
        03 FLHTCI

        Comment


        • #5
          Originally posted by Happy Hours View Post
          yea I like that too and I wonder if these instructions would work on my FXR?
          yes it will work ..i originally did this on my buddies sporty for him.then did same on the springer
          09 Softail Springer FLSTFBT "AKA" Heritage Fatbones Touring
          www.youtube.com/user/bcvtwin?feature=mhee

          herd #148
